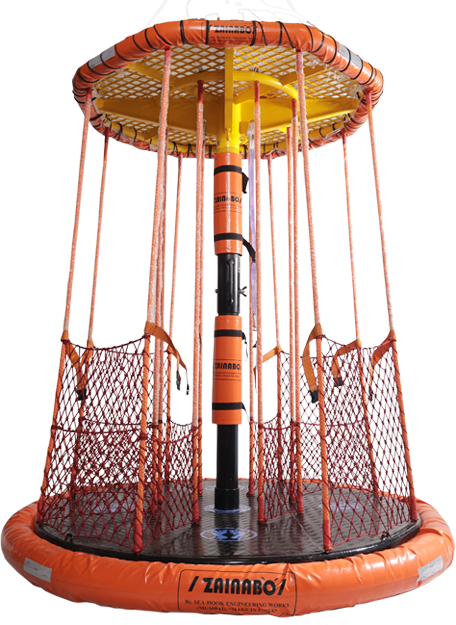

Personnel Transfer Basket
Make: Zainab'O'
Model: Z-601-4
Sailent Features
- Max. Load: 4 Adults 340 KGS
- Luggage Weight: 160 KGS
- Rated Work Load: 500 KGS
- Gross Weight: 225 KGS
- Max.Test Load: 1100 KGS
- (Shelf Life of Basket: 8 Years)
| Model | Capacity | Weight |
| Z-601-4 | 4 Persons | 496 LBS |
Quick & Effective
This 4 persons transfer device is used to quickly and effectively transport personnel on and off of platforms. Only the 4 person device come with netting between the riders.
Safety without Confinement
All models are equipped with quick release safety lanyards to provide safety and give the rider confidence while in transit. You told us you didn’t want to sit down and be buckled in. We listened.
Strong yet light weight
are made of a sturdy and very durable aluminum skeleton, to protect them from falling objects.
Strong yet light weight
are made of a sturdy and very durable aluminum skeleton, to protect them from falling objects.
| ID. NO | DESCRIPTION |
| 1 | Master Oblong Lifting Ring |
| 2 | Bow Shackle Nut & Bolt |
| 3 | PVC Coated Yellow Cloth with Inner side safety nylon & shock absorb rubber |
| 4 | Wire Rope Lifting Sling |
| 5 | Master Link with Sub Link |
| 6 | Wire rope four-legged sling |
| 7 | Bow Shackle Nut & Bolt |
| 8 | Eye Bolt |
| 9 | Top Disc Powder Coated Yellow |
| 10 | Top & Bottom Disc Interconnecting Sling |
| 11 | Vertical pipe one side threaded |
| 12 | Vertical centre pipe handle (11&13) |
| 13 | Vertical pipe |
| 14 | Safety Sling for life jacket with SS Snap hook |
| 15 | Polyethylene Foam with Orange cloth & Eye Let |
| 16 | Bottom foot rubber |
| 17 | Bottom Disc Powder Coated |
| 18 | Nylon centre bush |
| 19 | Aluminium Ant-skid Chequered Plating |
| 20 | Safety Sling |
| 21 | Nylon Netting |
| 22 | Top Disc Polyethylene foam with orange cloth & wrapped with PP rope |
Basket Maintenance Chart
- 6 Months Inspection - Qualified Inspector/OEM
- 12 Months Load Test-OEM
- 18 Months Inspection-Qualified Inspector/OEM
- 24 Months Refurbishment-OEM
- 30 Months Inspection-Qualified Inspector/OEM
- 36 Months Load Test-OEM
- 42 Months Inspection-Qualified Inspector/OEM
- 48 Months Refurbishment-OEM
- 54 Months Inspection-Qualified Inspector/OEM
- 60 Months Load Test-OEM
- 66 Months Inspection-Qualified Inspector/OEM
- 72 Months Refurbishment-OEM
